In an era where the insatiable appetite of generative AI and large-scale machine learning models is pushing electronic semiconductors to their physical and thermal limits, a collaborative team of researchers has unveiled a transformative breakthrough in photonics. Professors Namkyoo Park and Sunkyu Yu of Seoul National University, alongside Professor Xianji Piao of the University of Seoul, have developed a programmable photonic integrated circuit (PIC) capable of dynamically slowing, shaping, and controlling the flow of light.
This innovation, recently published in the prestigious journal Advanced Science, addresses one of the most stubborn bottlenecks in modern computing: the inherent inability to buffer or delay optical signals. By enabling the precise manipulation of light on a chip, this research paves the way for a new generation of high-speed, energy-efficient optical computers that could redefine the infrastructure of future data centers.
The Computing Bottleneck: Why Electrons Are Hitting a Wall
The rapid proliferation of artificial intelligence has fundamentally changed the requirements for computing hardware. As data centers struggle to process the massive, real-time datasets required by large language models, they are encountering a "brick wall" in conventional electronic computing.
Electronic semiconductors, which rely on the movement of electrons through copper wires and silicon gates, face two primary constraints: power consumption and latency. As processing speeds increase, the heat generated by electrical resistance becomes unsustainable. Furthermore, there is a physical limit to how quickly electrical signals can traverse a chip without suffering from signal degradation or timing jitter.
Optical computing—the processing of information using photons rather than electrons—has long been viewed as the "holy grail" for overcoming these barriers. Photons travel at the speed of light, possess significantly higher bandwidth, and generate far less heat than electrons. However, light suffers from a unique disadvantage: it is "too fast" and "too fixed." In standard optical systems, once a signal is sent, it cannot be easily paused, held, or delayed. Without the ability to store data temporarily (buffering) or synchronize incoming signals, a true optical computer has remained elusive.
Chronology of the Breakthrough
The path to this discovery involved a fundamental re-evaluation of how light interacts with resonator-based circuits.
The Foundation: Coupled-Resonator-Induced Transparency (CRIT)
For years, researchers have experimented with "Coupled-Resonator-Induced Transparency" (CRIT) to manipulate light. CRIT functions by using interference patterns among multiple optical resonators to create a "transparency window" within a specific frequency range. Within this window, light is effectively "slowed down" as it navigates the complex interference paths of the device.
The Problem with Permanence
Historically, CRIT-based devices were "hard-wired." Once a photonic circuit was fabricated on a silicon substrate, its operating frequency, delay time, and bandwidth were fixed. If an engineer needed a different delay profile or wanted to operate at a different frequency, they were forced to design and manufacture an entirely new chip. This lack of adaptability made CRIT systems impractical for the dynamic, multi-tasking environments of modern data centers.
The Pivot: Unified Degrees of Freedom

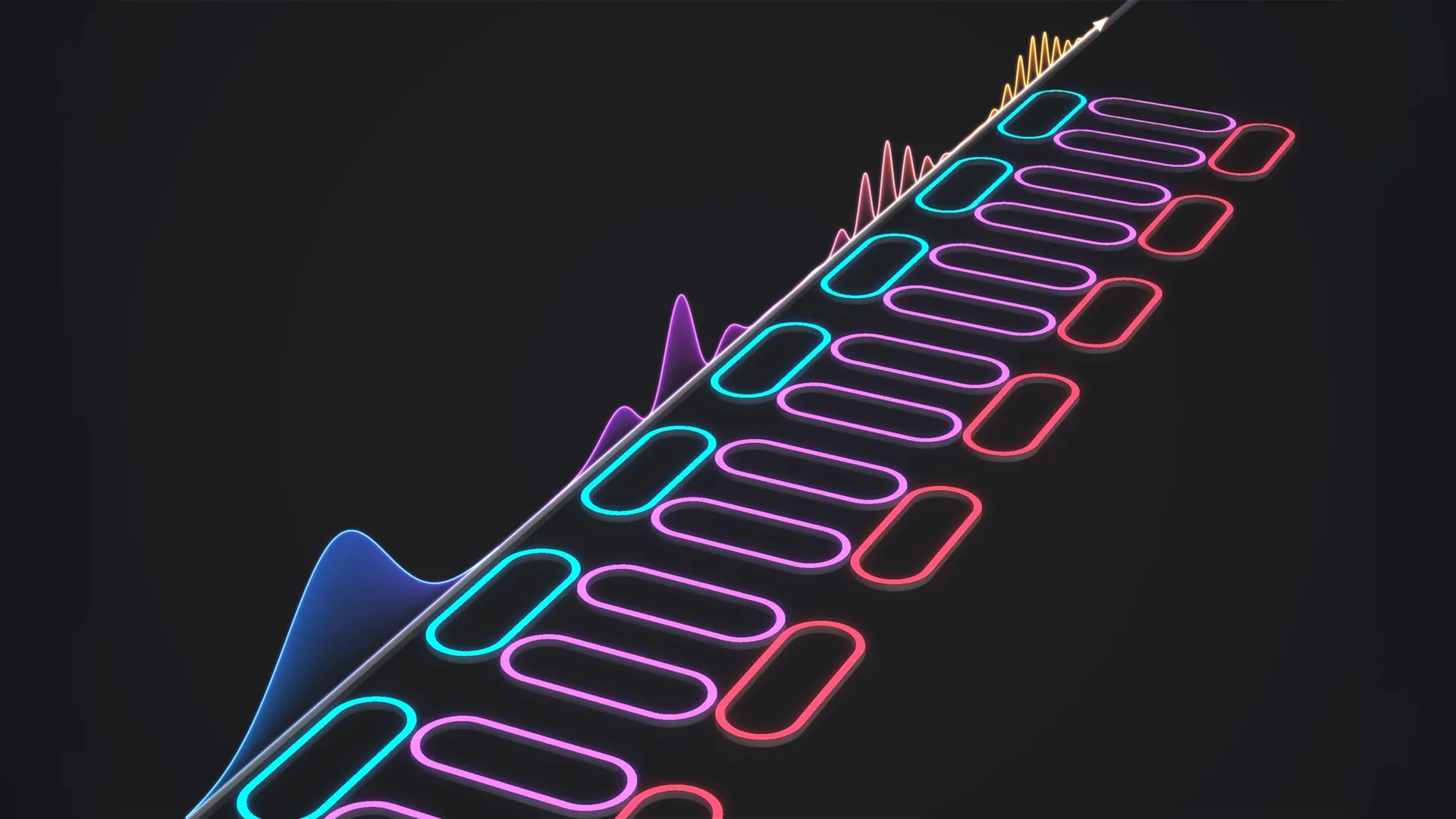

The team at Seoul National University and the University of Seoul approached this by changing the control logic. Rather than treating the "bright" and "dark" modes of the CRIT system as separate variables, they unified them as a single degree of freedom. By integrating two controllable loop couplers into the resonator structure, the researchers transformed the system from a static device into a programmable one. This shift allows the system to reconfigure its internal physics in real time, effectively granting engineers "software-defined" control over the speed of light within the hardware.
Supporting Data: Simulations and Scalability
To ensure that their theoretical framework could survive the transition from the whiteboard to the laboratory, the team conducted rigorous three-dimensional electromagnetic simulations.
Testing Against Reality
The researchers modeled their design on a silicon nitride (Si₃N₄) platform, a standard material for photonic integrated circuits. To prove the viability of the system, they subjected the model to a "stress test" of real-world variables, including:
- Material Losses: Accounting for absorption and scattering within the silicon nitride.
- Fabrication Imperfections: Simulating the impact of variations in resonator quality and coupling fluctuations.
- Environmental Noise: Factoring in thermal crosstalk and phase errors in the loop couplers.
The results were compelling: the system demonstrated that it could maintain high performance even under non-ideal, realistic operating conditions. The simulations confirmed that signal delay times could be adjusted dynamically—without interrupting processing performance—and that the device could even perform frequency conversion without needing additional, power-hungry components.
Official Responses and Researcher Insights
The implications of this research were underscored by the lead investigators, who view this as a foundational step toward a new paradigm in hardware design.
Professor Namkyoo Park of Seoul National University, co-corresponding author, emphasized the shift in design philosophy:
"This research is significant in that it proposes a new design principle that allows the flow of light within photonic integrated circuits to be reconfigured as needed, greatly enhancing design flexibility. We plan to expand this technology toward large-scale programmable photonic integrated circuits based on silicon photonics and photonic AI technologies."
The co-first authors of the study, Dr. Seungkyun Park and Ph.D. student Beomjoon Chae, highlighted the intellectual journey behind the project:
"Through this study, we realized that reinterpreting conventional photonic resonator physics from a different perspective can serve as a starting point for discovering new functionalities in photonic integrated circuits. We plan to further develop this research toward practical device implementation and experimental validation."
The project received significant support from the Ministry of Science and ICT, reflecting the South Korean government’s commitment to securing a lead in next-generation computing infrastructure.
Implications: The Future of AI and Beyond
The ability to control the "time" of an optical signal is not just a laboratory curiosity; it is a critical requirement for building the next generation of computing systems.
A Software-Defined Future for Hardware
The most immediate application of this technology is in AI-focused data centers. By implementing programmable optical delay lines, engineers can synchronize data streams with nanosecond precision, significantly reducing the overhead currently required for timing and error correction. Because the chip is programmable, a single component could theoretically switch between different roles—acting as a buffer at one moment and a frequency converter the next—leading to massive reductions in physical hardware footprint and electricity usage.
Broadening the Horizon
Beyond data centers, the potential applications for this technology are vast:
- Autonomous Driving: Real-time processing of high-bandwidth lidar data requires instant, synchronized analysis. Programmable optics could provide the necessary hardware acceleration to make autonomous decisions safer and faster.
- Quantum Technologies: Quantum computing requires extremely precise control over the state and timing of qubits (in this case, photonic qubits). This programmable platform offers a robust way to manipulate quantum states without introducing unnecessary decoherence.
- Next-Generation Communications: As we transition toward 6G and beyond, the ability to reconfigure optical network hardware on-the-fly will be essential for managing the increased complexity of global data traffic.
Conclusion
The work of Professors Park, Yu, and Piao represents a bridge between theoretical photonics and practical, industrial-scale application. By proving that the speed of light can be managed with the same agility as software code, they have cleared a significant hurdle on the road to the post-electronic age. As the team moves toward experimental validation and larger-scale integration, the industry is one step closer to chips that are not only faster and cooler but fundamentally more capable of adapting to the shifting demands of the artificial intelligence era.
